Heating System Visualization

Real-time telemetry and visualization of a multi-source residential heating system.

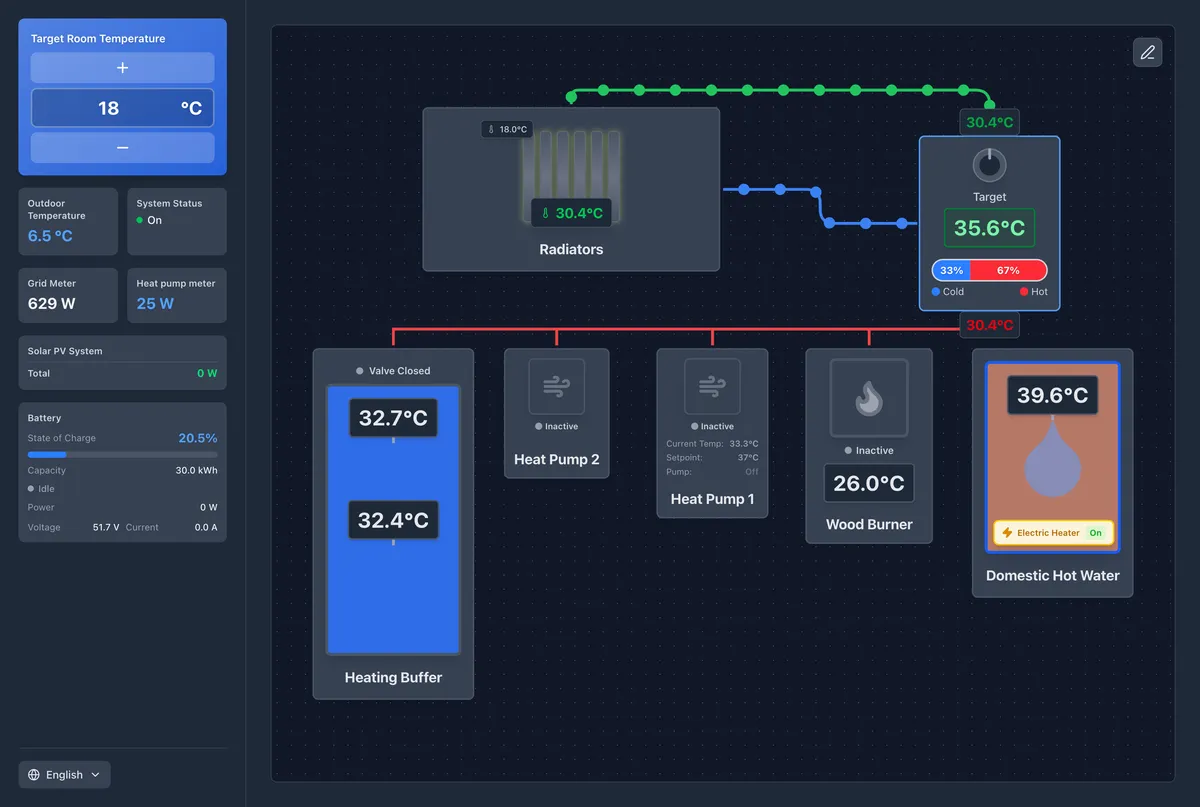

A dedicated real-time monitoring and visualization platform for a hybrid residential heating installation. The system aggregates sensor feeds across multiple thermal sources to give complete visibility into thermal storage, heat pump performance, and distribution efficiency.

Technical Scope:

Multi-Source Telemetry: Continuous monitoring across dual heat pumps, wood-burner buffer storage, solar thermal collectors, and domestic hot water tanks.
Hydronic Control Visibility: Real-time tracking of mixing valve positions, flow and return temperatures, and custom heating curves tailored to ambient weather.
Time-Series Stack: High-frequency sensor ingestion into InfluxDB with Grafana dashboards providing real-time status and historical diagnostic analytics.
Self-Hosted Infrastructure: Securely hosted on local infrastructure with encrypted external access.
